Portable power station

⚡ Product Overview

This portable power station series provides clean, stable, and eco-friendly energy for camping, outdoor activities, home backup, RVs, and emergency situations. Featuring pure sine wave AC output, high conversion efficiency (>90%), and multiple output ports, it supports charging multiple devices simultaneously.

✅ DC & USB ports support pass-through charging
(Devices can be used while the power station is recharging)

🔌 Available Models & Specifications

🔋 Model: PB-B600

• Rated Power: 600W / 200,000mAh / 600Wh

• AC Output: 220V–250V | 50–60Hz

• Output Waveform: Pure Sine Wave

• Conversion Efficiency: >90%

• Battery Type: Lithium-ion

• Charging Current: 14V 10A

• Charging Time: 4–5 Hours

• Cable Length: 5m

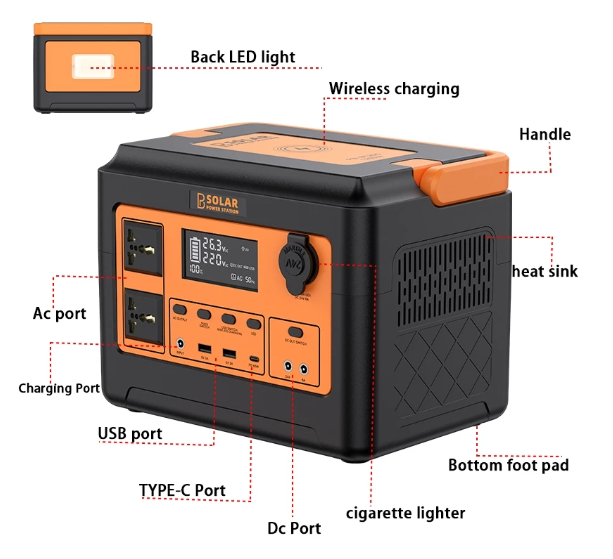

Output Ports:

• USB: 5V/3A ×2 + PD 60W ×1

• DC Output: 12V/8A ×2 + 1 Onboard Port

• Wireless Charging: 15W

Protection:

• Low voltage / Overvoltage

• Overload / Over-temperature

🔋 Model: PB-B1200

• Rated Power: 1200W / 320,000mAh / 1204Wh

• AC Output: 220V–250V | 50–60Hz

• Output Waveform: Pure Sine Wave

• Conversion Efficiency: >90%

• AC Socket: 2 Universal Sockets

• Battery Type: Lithium-ion

• Charging Current: 28V 10A

• Charging Time: ≈5 Hours

Output Ports:

• USB: 5V/3A ×2 + PD 60W ×1

• DC Output: 24V/10A ×2 + 1 Onboard Port

• Wireless Charging: 15W

Advanced Protection:

• Low voltage, overvoltage, overload

• Over-temperature (auto high-speed fan above 50°C)

• Short circuit protection

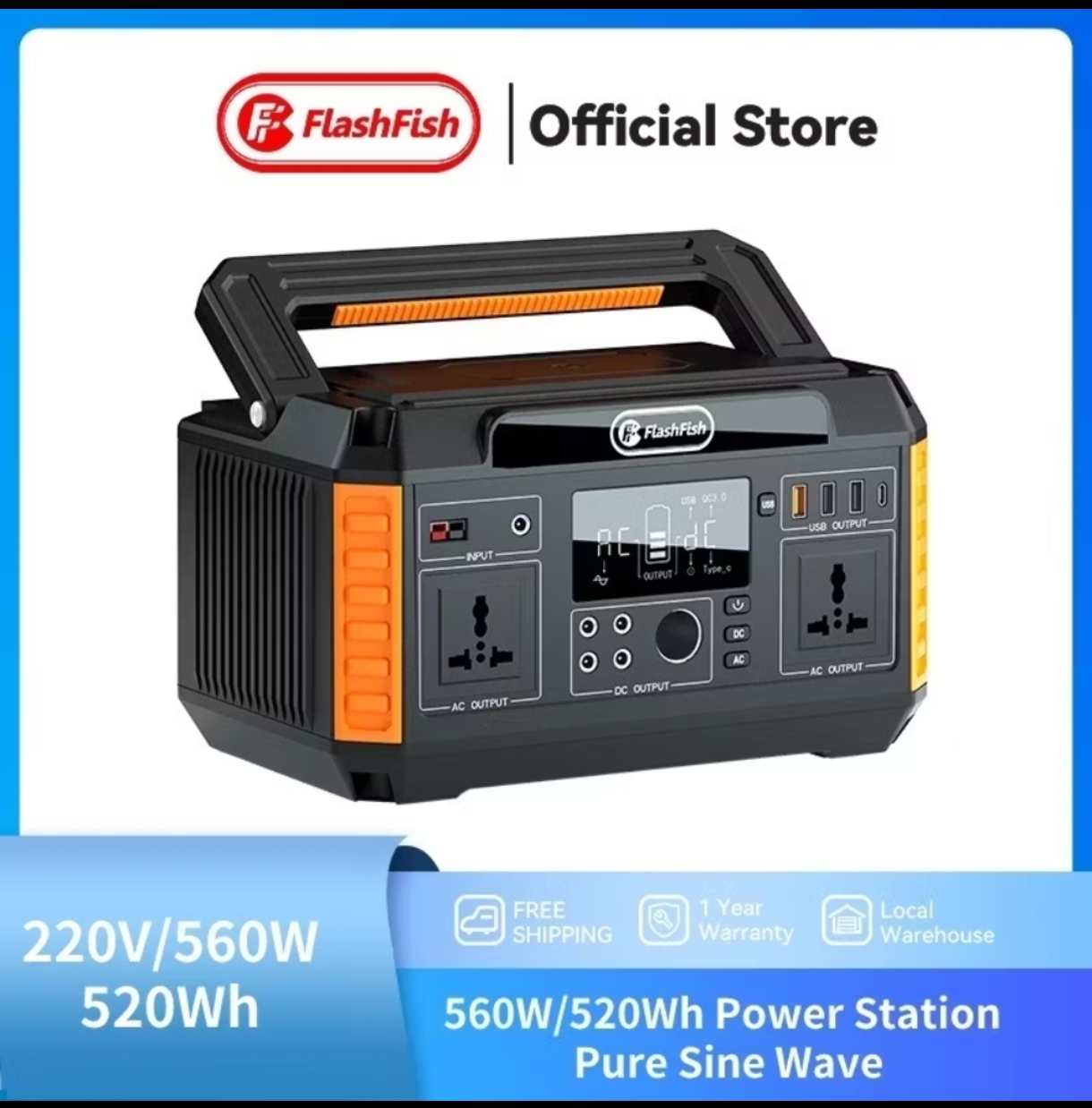

🔋 Model: Flashfish P60

• Battery Capacity: 520Wh / 140,400mAh (3.7V)

• Rated Power: 560W (1100W Surge)

• AC Output: 2 × 220V Pure Sine Wave

• DC Output: 4 × 12V/10A + Car Port 12V/10A

• USB Output: 3 × USB-A + 1 × Type-C Fast Charge

• Input Charging: 15V / 6A

• Weight: 5.6kg

• Size: 288 × 189 × 166mm

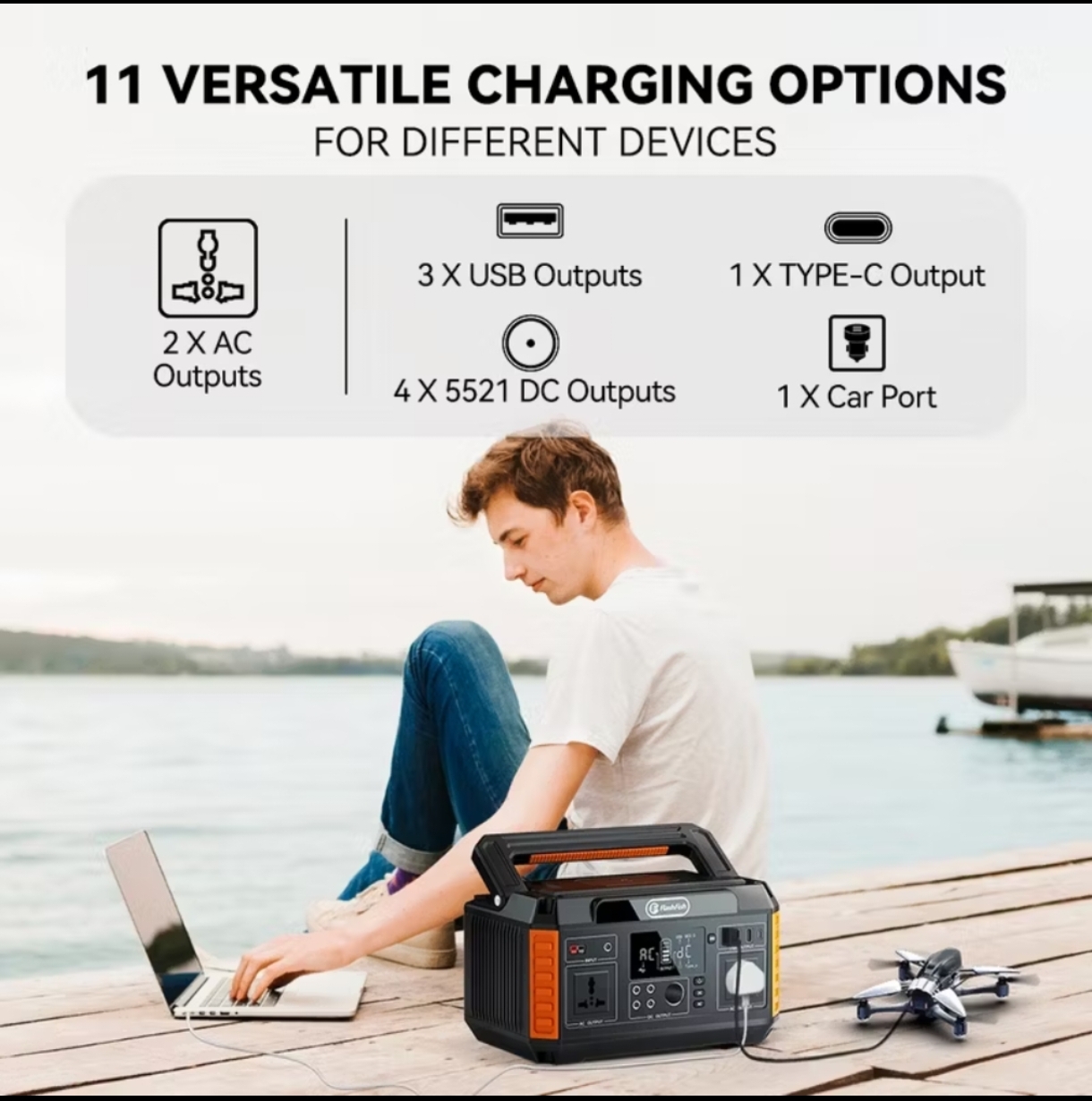

✅ Can power up to 11 devices simultaneously

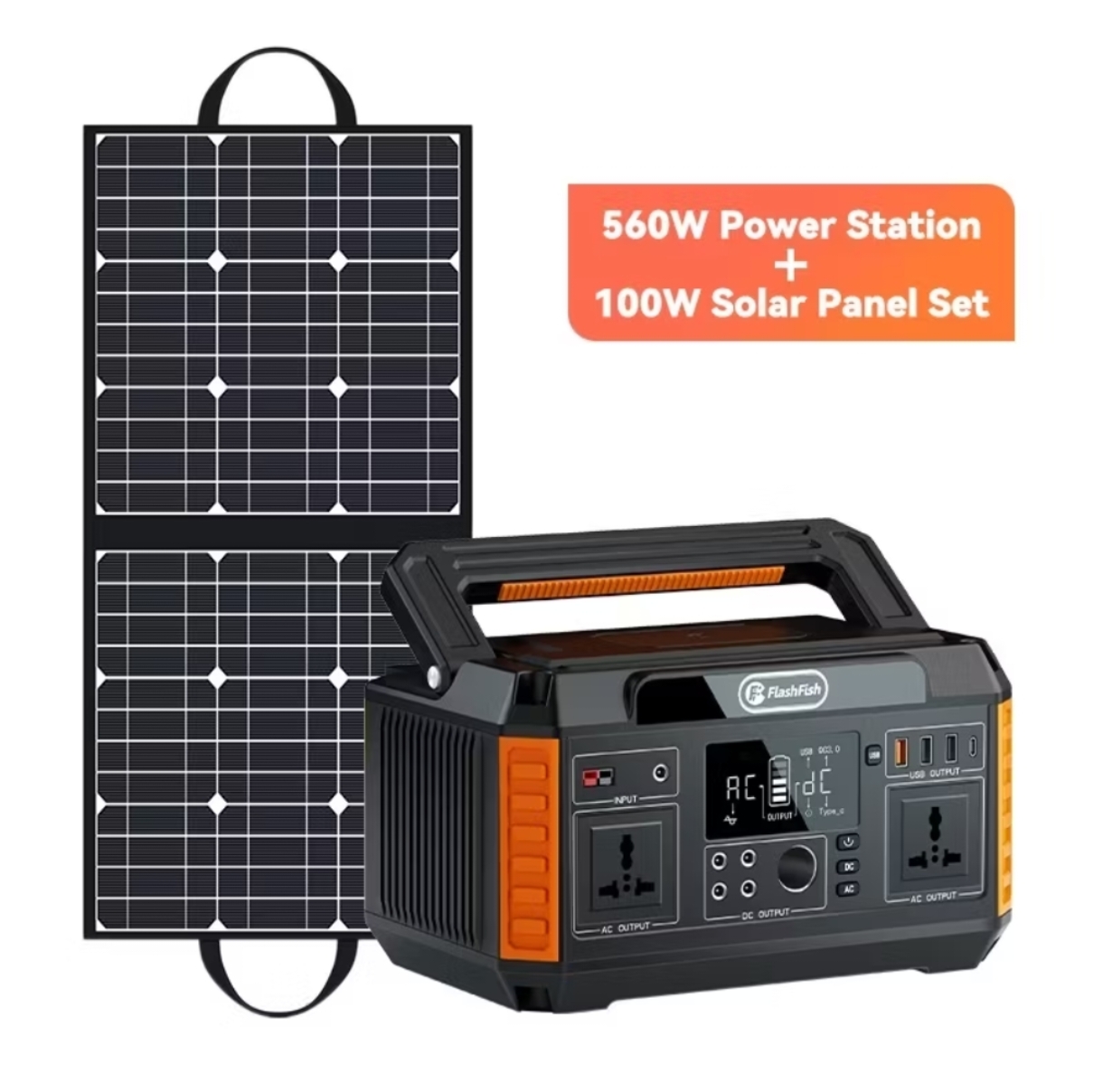

☀️ Solar Panel (Optional)

• Power: 60W (Monolithic / 4-Fold)

• Voltage: 15V / 30V

• Current: 4A

• Weight: 3.3kg

• Size: 65 × 57 × 6cm

• Output: DC

• Cable Length: 5m

(Recommended: Flashfish 100W 18V Solar Panel – sold separately)

🌟 Key Features

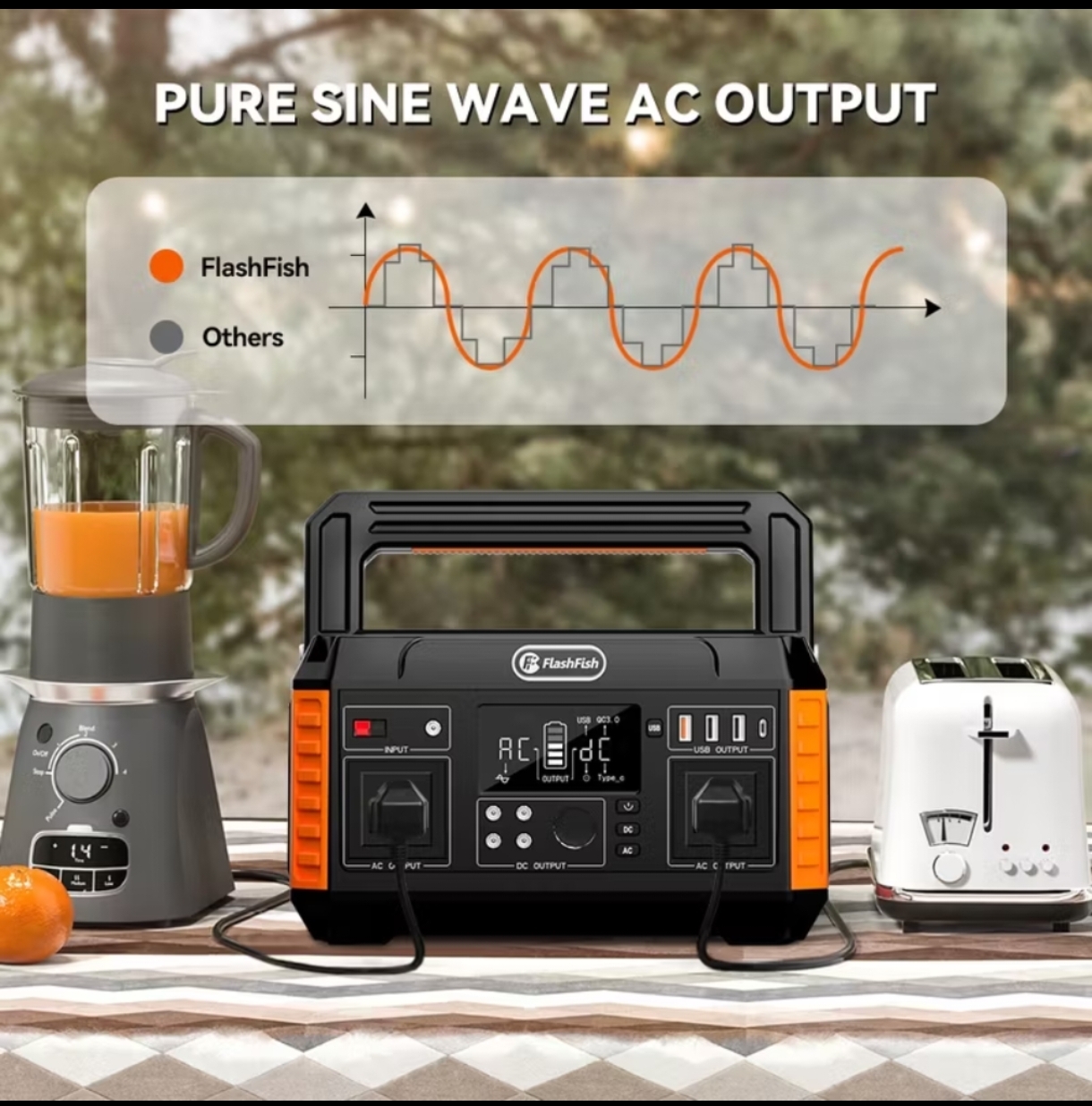

• Pure Sine Wave – Safe for sensitive electronics

• 3 Charging Methods: Wall socket / Car charging / Solar panel

• Premium BMS Protection:
  Over-charge, over-discharge, over-current, over-voltage, overload, short circuit, over-temperature

• Lightweight & Portable with ergonomic handle

• Multi-Function LCD Display
  Shows battery level, AC/DC/USB output status – clear even in dark environments

• Clean, Eco-Friendly & Silent Power

📦 Package Includes

• 1 × Portable Power Station

• 1 × Power Adapter

• 1 × Cigarette Lighter Adapter

• 1 × Car Charger

• 1 × User Manual

❓ FAQs

1. What devices can it power?

• AC devices under rated wattage (e.g. P60 ≤560W)

• DC devices ≤120W

• If overloaded, protection mode activates – remove device and restart AC output

2. How to calculate usage time?
Working time ≈ Capacity × 0.9 ÷ Device Power
Example: 520Wh × 0.9 ÷ 60W ≈ 7.8 hours

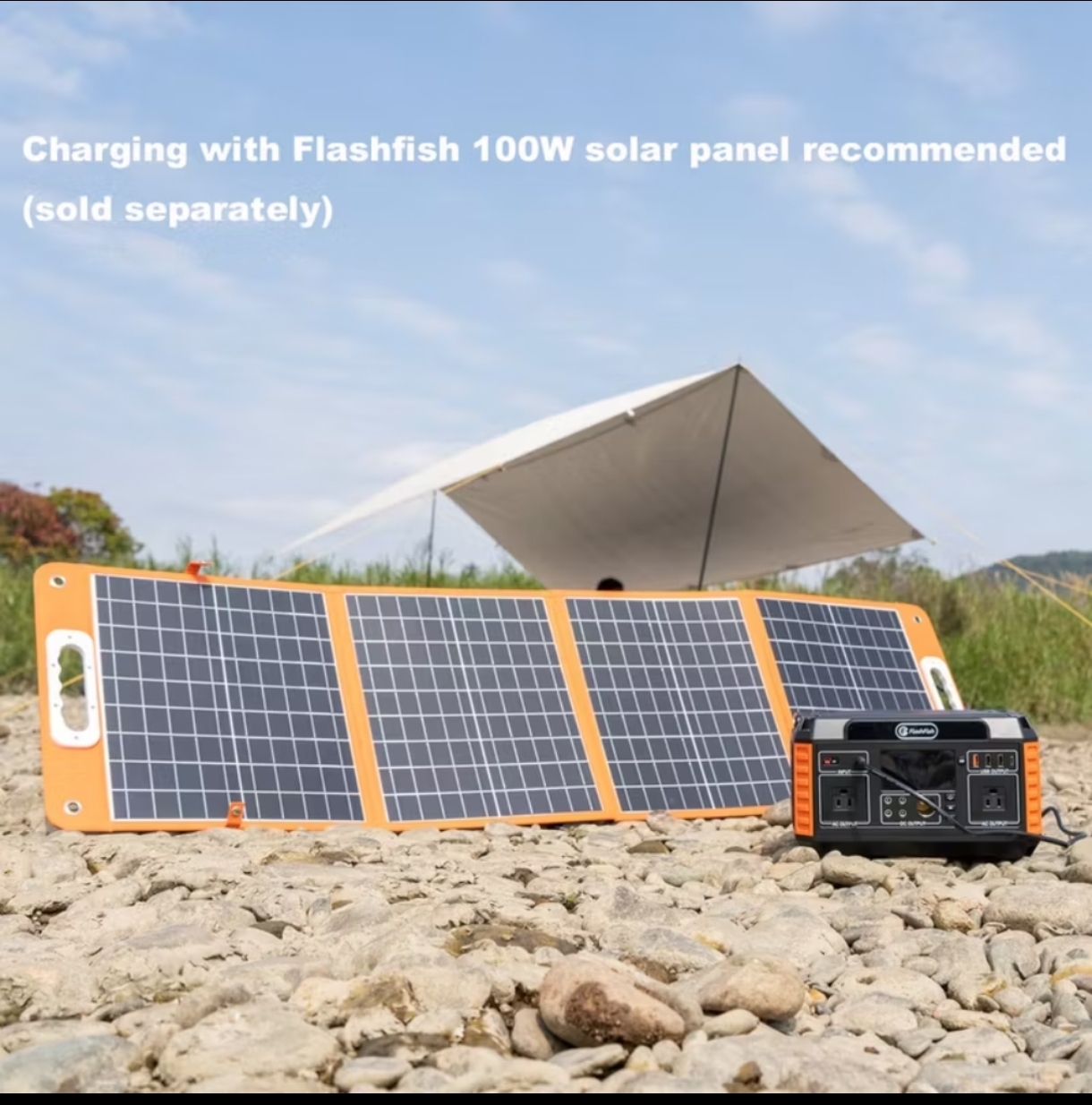

3. Which solar panel is recommended?

• Flashfish 100W 18V Solar Panel
  (Charging speed depends on sunlight intensity)

📞 If you have any questions, please contact customer service.
